What is UPN - User Principal Name

What is UPN

User Principal Name (UPN) attribute in Microsoft Active Directory is userPrincipalName, and its value may be set as user's email address, though not necessarily. You can view UPN via the AttributeEditor property of a user's account in Active Directory, see below screenshot that shows Attribute name as userPrincipalName and its Value set as testuser1@DC1.example.com


You can also derive the UPN from the user's Account - User logon name, in Active Directory. See below concatenation of user logon name and domain suffix - testuser1 and DC1.example.com. Concatenating these two (as shown in the screenshot below) yields testuser1@DC1.example.com which is the email address of the user. (Note in Pre-Windows 2000 the User logon name is DC\testuser1)


How to view Attribute Editor in Active Directory

You have to select Advanced Features (right click on the Domain Controller DC1.example.com on the left pane, click on View and then click Advanced Features) in order to view the Attribute editor Property. See below Advanced Features option is checked

Similarly you can view the user's sAMAccountName (via the Attribute Editor Property) - Attribute name is sAMAccountName and its Value is set as testuser1
See below screenshot showing the sAMAccoutName and its value


The sAMAccountName of a user is derived from the user's Account, as shown below

 Note: UPN is an attribute and its value can be set to any value. However it is commonly set as user's email address. Setting UPN as email address is good idea since email address for any user is unique value in an organization. When Smart Card is used to logon to Active Directory, the UPN value in the Certificate contained in user's Smart Card should match the user's UPN value in Active Directory.

 sAMAccountName is unique in a domain, however it is not guaranteed to be unique across multiple domains in a given Forest. Hence it is possible for two users in different domains under the same Forest to have the same sAMAccountName. It is good practice to maintain unique sAMAccountName in a AD forest. However, UPN is guaranteed to be unique across a AD forest.

 Active Directory is the Windows implementation of a general-purpose directory service, which uses LDAP as its primary access protocol. Active Directory stores information about a variety of objects in the network such as user accounts, computer accounts, groups, and all related credential information used by Kerberos. Active Directory is either deployed as Active Directory Domain Services (AD DS) or Active Directory Lightweight Directory Services (AD LDS).


 References
[1] Microsoft link for User Naming Attributes
[2] Enabling Smart Card Authentication with Active Directory


Comments

Post a Comment

Popular posts from this blog

VMware fix for Invalid manifest and ova file import failed errors

Recently we got a OVA file for a virtual machine. The vendor instructions were to import the ova file in vmware Workstation, Player for Windows/Linux, Fusion for Mac, and VirtualBox as well.  The instructions were to take the available package and launch the VM with VMware workstation. The package contained  Module.mf, Module.ovf and Module-disk.vmdk and a Module.ova file. The .mf and .ovf file were 2 KB each whereas the vmdk was several gigs. The package also contained a Module.ova file which was several gigs as well. OVF           Open Virtualization Format MF             Manifest file VMDK       Virtual Machine Disk OVA           Open Virtualization Appliance The ovf file is a xml file that contains metadata for the ovf package The mf file contains the SHA1 hash codes of all files in the package The vmdk file is the disk image of the virtual machine,  VMware Workstation or VirtualBox. (vmdk format was originally developed by VMware and is an open format now). All of
Read more

SOAPUI - import certificate

Note: SoapUI has two versions, one is open source and second Professional version. The open source can be download here . (confirmed link 12/19/2018). SSL Handshake issue:   There is an Issue in SoapUI version 5.3.0 (and 5.2.0 version) with SSL handshake error. It was resolved by updating below in vmoptions file ( refer here ). However, the error that shows up while trying to load wsdl is "Error loading WSDL" as below The fix is to Enable TLS 1.2 protocol for SOAP/REST calls in SoapUI, by ammending the vmoptions file to add the directive for TLS as (-Dsoapui.https.protocols=TLSv1.2). Refer here . Update: Version 5.5.0 does not have this issue. If you are on 5.3.0 better upgrade to 5.5.0 which is available now (Feb 2019). I had above issue as well as another issue reaching to https endpoint. Upgrade to 5.5.0 resolved issue. Select "Check for updates" under the Help menu and you will get option for upgrade. Select upgrade current version and accept all defaul
Read more

Session Timeout in Oracle Access Manager

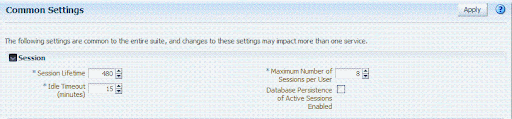

Session Timeout in Oracle Access Manager (OAM) The session lifetime and Idle timeout entries control how long a user's session is valid. In OAM, a user session is an object which represents an authenticated user. This object is stored in the server memory and if Database session persistence is enabled, this object is stored or available in the database. Each session is unique and is identified by both a userid and Session ID (session identifier), see screenshot below "OAM User Session Management".  A valid session means a user has been authenticated with OAM. A session can have following three states: 1) active 2) inactive 3) expired When a session is created it is in active state and is available as an object in the OAM. After a set time - idle timeout, the session moves or transitions to inactive state. And finally after the Session Lifetime time, the session is marked as expired. Expired sessions are removed from server memory. Read more about Session Lifetime
