How to check your machine's Processor Architecture

How to check your machine's processor architecture and Operating System on a linux host

You can check your linux host computer processor is 32-bit or 64-bit and whether your Operating System is 32 or 64 bit. A 32 bit processor can only address 2^32 = 4,294,967,296 of RAM or 4 GB RAM.

 There are various ways you can find this information in linux as given below.

 (1) Here is one line c program that finds your machine's architecture.
#include
int main(void)
{
   printf("%d\n", _WORDSIZE);
   return 0;
}
It compiles on gcc compiler, (gcc wordsize.c) see below in screenshot. You can run the compiled executable a.out as shown in the  first screenshot, its output is 64.

 (2) Unix command uname -p, gives the machine architecture type or the cpu type.

 (3) getconf command provides what is the bit version of the Operating System, e.g 32-bit or 64 bit

 (4) lscpu command provides both, the Architecture as well as CPU modes as shown below. lscpu command gives a full listing of all the cpu parameters, the first two, Architecture and CPU op-mode(s) provide the Processor architecture and capability of CPU support for 32/64 bit instructions.

 See below commands that were run on Red Hat Linux machine.

lscpu command gives a full listing of all the cpu parameters, as shown above. Its output shows two lines - the first line provides what the current "Architecture" of the machine is, and the second line is the "CPU op-mode(s)", provides the capability of CPU support for 32 and 64 bit instructions.

uname command and options

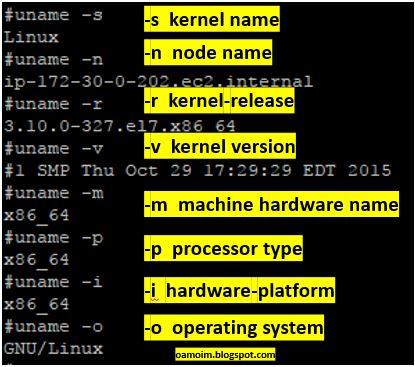

uname command output   {-s kernnel name, -n node name, -r kernel-release, -m machine hardware name, -p processor type, -i hardware-platform, -o Operating System}. See output of all commands below (on a RHEL host)
uname command























Refer the Redhat website for Common Administrative commands


Comments

Post a Comment

Popular posts from this blog

VMware fix for Invalid manifest and ova file import failed errors

Recently we got a OVA file for a virtual machine. The vendor instructions were to import the ova file in vmware Workstation, Player for Windows/Linux, Fusion for Mac, and VirtualBox as well.  The instructions were to take the available package and launch the VM with VMware workstation. The package contained  Module.mf, Module.ovf and Module-disk.vmdk and a Module.ova file. The .mf and .ovf file were 2 KB each whereas the vmdk was several gigs. The package also contained a Module.ova file which was several gigs as well. OVF           Open Virtualization Format MF             Manifest file VMDK       Virtual Machine Disk OVA           Open Virtualization Appliance The ovf file is a xml file that contains metadata for the ovf package The mf file contains the SHA1 hash codes of all files in the package The vmdk file is the disk image of the virtual mac...
Read more

Session Timeout in Oracle Access Manager

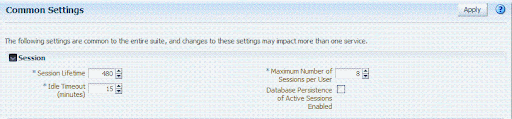

Session Timeout in Oracle Access Manager (OAM) The session lifetime and Idle timeout entries control how long a user's session is valid. In OAM, a user session is an object which represents an authenticated user. This object is stored in the server memory and if Database session persistence is enabled, this object is stored or available in the database. Each session is unique and is identified by both a userid and Session ID (session identifier), see screenshot below "OAM User Session Management".  A valid session means a user has been authenticated with OAM. A session can have following three states: 1) active 2) inactive 3) expired When a session is created it is in active state and is available as an object in the OAM. After a set time - idle timeout, the session moves or transitions to inactive state. And finally after the Session Lifetime time, the session is marked as expired. Expired sessions are removed from server memory. Read more about Session Lifetime ...
