Configuring Active Directory authenticator with Weblogic server

Original blog from  http://weblogic-wonders.com/weblogic/2010/12/04/configuring-active-directory-authenticator-with-weblogic-server/ LINK

Weblogic Server comes with an Embedded LDAP Server which acts as the Default Provider for authentication, authorization and rolemapping.Since authentication is based on JAAS ( Java Authentication and Authorization Service), we can have external providers as well.These providers can be Out Of the Box Providers provided by WLS or Custom Providers which can be plugged in. I’ll discuss that in some other article.
These are some of the providers





WLS does provide an out of the box provider for Active Directory.
These are the steps to configure it.
Step 1). Open Active Directory Console
Step 2). Create a User
Step 3). Assign it to Administrator Group. This is required as Active Directory gives connection only to Admin User.

Step 4). Go to Weblogic Server and Create an Active Directory Authentication Provider
Step 5) Under Provider Specific, provide the following values, leave the others as default.
Propagate Cause For Login Exception ( checked)
Principal :CN=aduser,CN=Users,DC=faisal,DC=bea,DC=com
User Base Dn : CN=Users,DC=faisal,DC=bea,DC=com
Credential : XXXXXX
Group Base Dn: CN=Users,DC=faisal,DC=bea,DC=com
You should see the following in the config.xml

ActiveDirectory
SUFFICIENT
false
CN=aduser,CN=Users,DC=faisal,DC=bea,DC=com
CN=Users,DC=faisal,DC=bea,DC=com
{3DES}YoOwqSH1jxsOlvUmAYOENw==
CN=Users,DC=faisal,DC=bea,DC=com
Step 6) Change the control flag of the Active Directory Authenticator and the Default Authenticator to SUFFICIENT

Step 7) Restart your server. Go to myrealm. You should be able to see the users and groups from the Active Directory.





Comments

Post a Comment

Popular posts from this blog

VMware fix for Invalid manifest and ova file import failed errors

Recently we got a OVA file for a virtual machine. The vendor instructions were to import the ova file in vmware Workstation, Player for Windows/Linux, Fusion for Mac, and VirtualBox as well.  The instructions were to take the available package and launch the VM with VMware workstation. The package contained  Module.mf, Module.ovf and Module-disk.vmdk and a Module.ova file. The .mf and .ovf file were 2 KB each whereas the vmdk was several gigs. The package also contained a Module.ova file which was several gigs as well. OVF           Open Virtualization Format MF             Manifest file VMDK       Virtual Machine Disk OVA           Open Virtualization Appliance The ovf file is a xml file that contains metadata for the ovf package The mf file contains the SHA1 hash codes of all files in the package The vmdk file is the disk image of the virtual machine,  VMware Workstation or VirtualBox. (vmdk format was originally developed by VMware and is an open format now). All of
Read more

SOAPUI - import certificate

Note: SoapUI has two versions, one is open source and second Professional version. The open source can be download here . (confirmed link 12/19/2018). SSL Handshake issue:   There is an Issue in SoapUI version 5.3.0 (and 5.2.0 version) with SSL handshake error. It was resolved by updating below in vmoptions file ( refer here ). However, the error that shows up while trying to load wsdl is "Error loading WSDL" as below The fix is to Enable TLS 1.2 protocol for SOAP/REST calls in SoapUI, by ammending the vmoptions file to add the directive for TLS as (-Dsoapui.https.protocols=TLSv1.2). Refer here . Update: Version 5.5.0 does not have this issue. If you are on 5.3.0 better upgrade to 5.5.0 which is available now (Feb 2019). I had above issue as well as another issue reaching to https endpoint. Upgrade to 5.5.0 resolved issue. Select "Check for updates" under the Help menu and you will get option for upgrade. Select upgrade current version and accept all defaul
Read more

Session Timeout in Oracle Access Manager

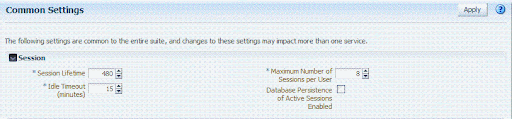

Session Timeout in Oracle Access Manager (OAM) The session lifetime and Idle timeout entries control how long a user's session is valid. In OAM, a user session is an object which represents an authenticated user. This object is stored in the server memory and if Database session persistence is enabled, this object is stored or available in the database. Each session is unique and is identified by both a userid and Session ID (session identifier), see screenshot below "OAM User Session Management".  A valid session means a user has been authenticated with OAM. A session can have following three states: 1) active 2) inactive 3) expired When a session is created it is in active state and is available as an object in the OAM. After a set time - idle timeout, the session moves or transitions to inactive state. And finally after the Session Lifetime time, the session is marked as expired. Expired sessions are removed from server memory. Read more about Session Lifetime
